2TVPM Series Two Stage Screw Air Compressor
2TVPM series is 2 stage compression variable speed screw air compressor with permanent magnet motor. It is designed for reduced energy consumption, high reliability and serviceability. The 2-stage compression element is proven to increase efficiency and reliability at large air flow in the harsh conditions, same power but we can give you more compressed air.
Inquiry
Benefits
1. Two stage air end
Much higher efficiency,using same power can provide muchlarger free air delivery.
2. Petoanent magnet
More than 95% high efficiency, that means to have a much better performance than most of the compressors in the market.
3. Centrifugal fan
Lower noise and have a much larger volume than the axial flow fan
4. Separated cold/hot area
Independent cooling channel,high effiency and longer service life
Technical Parameter
| Model | Max Working Pressure | Capacity | Motor Power | Connection | Net Weight | Dimension (LxWxH) |
||
|---|---|---|---|---|---|---|---|---|
| -- | bar | psig | m 3 /min | hp | kw | inch | kgs | mm |
| 2TVPM22-7 | 7 | 102 | 4.2 | 30 | 22 | Rp1 | 620 | 1500x1060x1250 |
| 2TVPM22-8 | 8 | 116 | 4.1 | |||||
| 2TVPM22-10 | 10 | 145 | 3.5 | |||||
| 2TVPM22-13 | 12.5 | 181 | 3.2 | |||||
| 2TVPM37-7 | 7 | 102 | 7.2 | 50 | 37 | Rp1-1/2 | 820 | 1660x1145x1400 |
| 2TVPM37-8 | 8 | 116 | 7.1 | |||||
| 2TVPM37-10 | 10 | 145 | 6.3 | |||||
| 2TVPM37-13 | 12.5 | 181 | 5.4 | |||||
| 2TVPM55-7 | 7 | 102 | 12.8 | 75 | 55 | Rp2 | 1860 | 2460x1450x1640 |
| 2TVPM55-8 | 8 | 116 | 12.5 | |||||
| 2TVPM55-10 | 10 | 145 | 9.6 | |||||
| 2TVPM55-13 | 12.5 | 181 | 8.6 | |||||
| 2TVPM75-7 | 7 | 102 | 17.3 | 100 | 75 | Rp2 | 1960 | 2460x1450x1640 |
| 2TVPM75-8 | 8 | 116 | 16.3 | |||||
| 2TVPM75-10 | 10 | 145 | 12.4 | |||||
| 2TVPM75-13 | 12.5 | 181 | 11 | |||||
| 2TVPM90-7 | 7 | 102 | 20.8 | 120 | 90 | Rp2-1/2 | 2800 | 2500x1660x1930 |
| 2TVPM90-8 | 8 | 116 | 19.8 | |||||
| 2TVPM90-10 | 10 | 145 | 16.9 | |||||
| 2TVPM90-13 | 12.5 | 181 | 14.3 | |||||
| 2TVPM110-7 | 7 | 102 | 24.5 | 150 | 110 | Rp2-1/2 | 3100 | 2500x1660x1930 |
| 2TVPM110-8 | 8 | 116 | 23.5 | |||||
| 2TVPM110-10 | 10 | 145 | 19.7 | |||||
| 2TVPM110-13 | 12.5 | 181 | 17.6 | |||||
| 2TVPM132-7 | 7 | 102 | 30 | 175 | 132 | Rp2-1/2 | 3300 | 2500x1660x1930 |
| 2TVPM132-8 | 8 | 116 | 28 | |||||
| 2TVPM132-10 | 10 | 145 | 23.5 | |||||
| 2TVPM132-13 | 12.5 | 181 | 19.8 | |||||
| 2TVPM160-7 | 7 | 102 | 34.5 | 250 | 160 | DN80 | 3800 | 3630x2160x2310 |
| 2TVPM160-8 | 8 | 116 | 33.6 | |||||
| 2TVPM160-10 | 10 | 145 | 30 | |||||
| 2TVPM160-13 | 12.5 | 181 | 23.8 | |||||
| 2TVPM185-7 | 7 | 102 | 41 | 300 | 185 | DN100 | 4100 | 3860x2160x2310 |
| 2TVPM185-8 | 8 | 116 | 38.4 | |||||
| 2TVPM185-10 | 10 | 145 | 32.5 | |||||
| 2TVPM185-13 | 12.5 | 181 | 28.6 | |||||
| 2TVPM250-7 | 7 | 102 | 55 | 350 | 250 | DN100 | 5600 | 3860x2160x2310 |
| 2TVPM250-8 | 8 | 116 | 54 | |||||
| 2TVPM250-10 | 10 | 145 | 46 | |||||
| 2TVPM250-13 | 12.5 | 181 | 40 | |||||
| 2TVPM315-7 | 7 | 102 | 63.07 | 430 | 315 | DN125 | 6600 | 4280x2200x2380 |
| 2TVPM315-8 | 8 | 116 | 60.83 | |||||
| 2TVPM315-10 | 10 | 145 | 53.19 | |||||
| 2TVPM315-13 | 12.5 | 181 | 44.82 | |||||

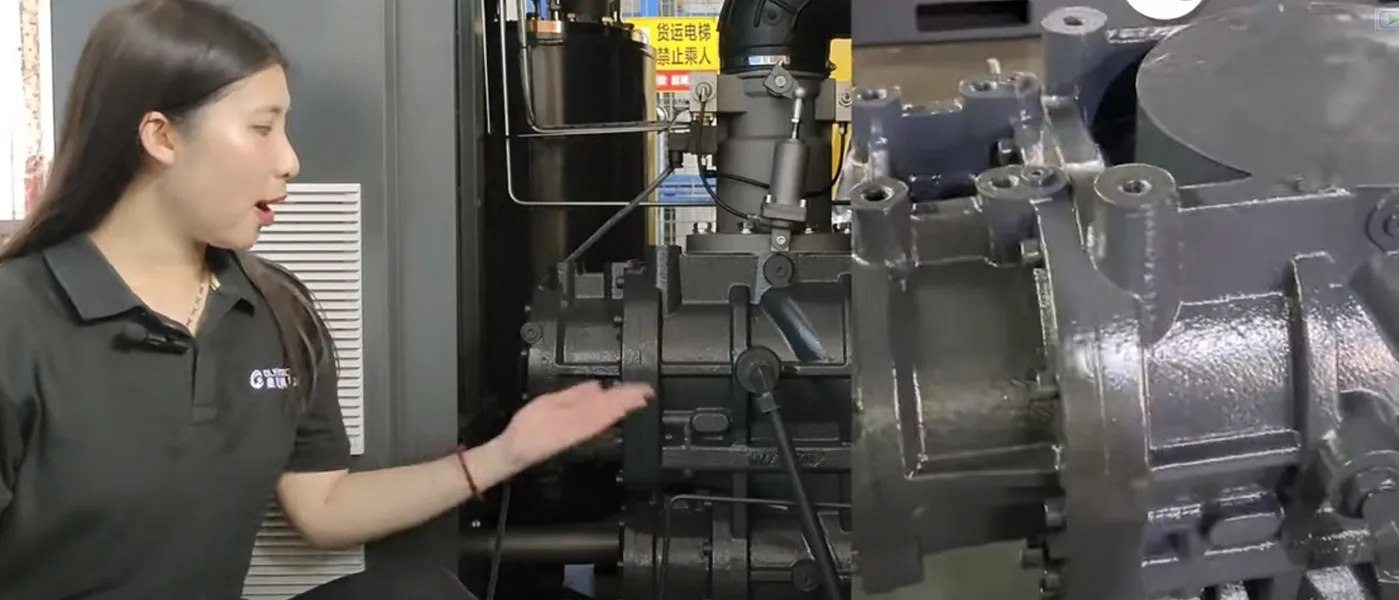

Video
Download Case

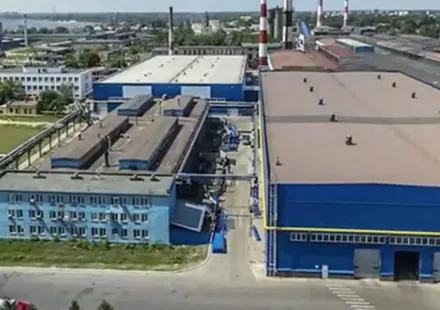

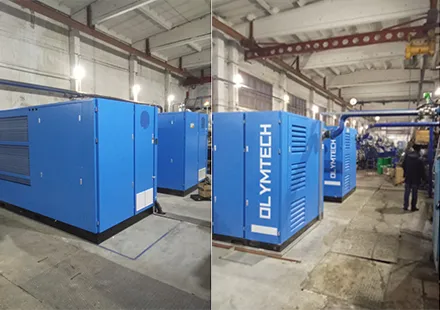

Olymtech Two units 2 stages VSD screw air compressor 2TVPM250-8 work in Russian well-known GLASS factory.
Help customers save 40% energy and improve their working efficiency a lot!
-
-
Olymtech 2-stages VSD screw air compressor realize:
*Energy saving
Big air flow
*Constant pressure
Soft VSD starting
*Remote control
*Computer monitor
Power we offer 22kw-250kw, Contact us for more details information!
-
