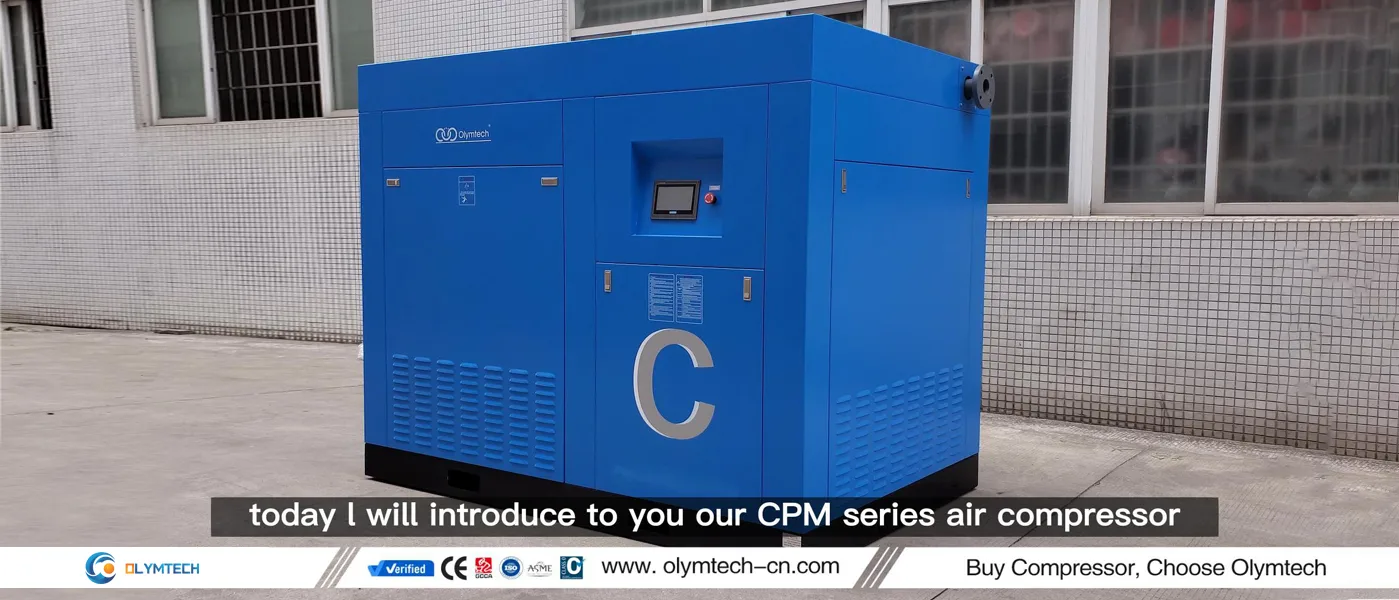

CPM Series Variable Speed Screw Air Compressor
CPM series is industrial type oil-injected variable speed screw compressor equips with permanent magnet motor is designed for reliability and efficiency. Will operate continuously in the harshest environments, avoiding costly downtime and production delays.
Inquiry
Benefits
1. Permanent Magnet Motor(2-5%)
IE3 Level,more energy saving
Temperature resistance is 140°C
2. Smart inverte(35%)
China Famous Brand (Inovance)
Air supply=air demand,no electricity wastage,no unload wastage.

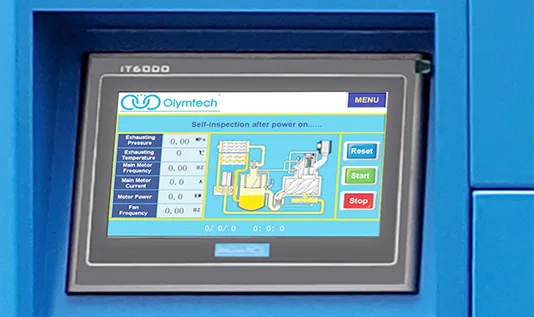

3. Colorful touch controller(3-15%)
Easy for operation wiht record,remain,alarm protect function
Multi-language available
4. Lossless direct drive(1-10%)
None of the transmission losses
Low noise and low vibration
Technical Parameter
| Model | Max Working Pressure |
Capacity | Motor Power | Transmission | Connection | Net Weight | Dimension (Lx W x H) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| -- | bar | psig | m 3 /min | CFM | hp | kw | inch | kgs | mm | |
| C7.5PM | 8 | 116 | 1.15 | 40 | 10 | 8 | Direct Drive | G1/2" | 180.00 | 850*600*980 |
| C11PM | 8 | 116 | 1.70 | 60 | 15 | 11 | Direct Drive | G1" | 450.00 | 1150*800*1135 |
| C15PM | 8 | 116 | 2.60 | 91 | 20 | 15 | Direct Drive | G1" | 480.00 | 1150*800*1135 |
| 10 | 145 | 2.20 | 77 | |||||||
| C22PM | 8 | 116 | 3.60 | 127 | 30 | 22 | Direct Drive | G1" | 500.00 | 1150*800*1135 |
| 10 | 145 | 3.20 | 113 | |||||||
| C30PM | 8 | 116 | 5.00 | 176 | 40 | 30 | Direct Drive | G1-1/2" | 650.00 | 1350*930*1255 |
| 10 | 145 | 4.40 | 155 | |||||||
| C37PM | 8 | 116 | 6.50 | 229 | 50 | 37 | Direct Drive | G1-1/2" | 680.00 | 1350*930*1255 |
| 10 | 145 | 5.60 | 197 | |||||||
| C45PM | 8 | 116 | 8.00 | 282 | 60 | 45 | Direct Drive | G1-1/2" | 930.00 | 1500*1125*1480 |
| 10 | 145 | 7.00 | 247 | |||||||
| C55PM | 8 | 116 | 10.00 | 353 | 75 | 55 | Direct Drive | G1-1/2" | 950.00 | 1500*1125*1480 |
| 10 | 145 | 8.60 | 303 | |||||||
| C75PM | 8 | 116 | 13.12 | 463 | 100 | 75 | Direct Drive | G2" | 1150.00 | 1700*1200*1600 |
| 10 | 145 | 11.60 | 409 | |||||||
| C90PM | 8 | 116 | 15.20 | 537 | 120 | 90 | Direct Drive | G2" | 1560.00 | 1900*1300*1900 |
| 10 | 145 | 13.30 | 470 | |||||||
| C110PM | 8 | 116 | 20.00 | 706 | 145 | 110 | Direct Drive | DN65 | 1700.00 | 2250*1500*1900 |
| 10 | 145 | 16.90 | 597 | |||||||
| C132PM | 8 | 116 | 22.50 | 795 | 175 | 132 | Direct Drive | DN65 | 1760.00 | 2250*1500*1900 |
| 10 | 145 | 20.10 | 710 | |||||||
Video
Download
Case
Screw Air compressors are used widely across all industries. Such as automotive, brewing, food packaging, aerospace, construction, and more. Stationary screw compressors are the optimal choice for large industrial applications with a continuous air demand.
