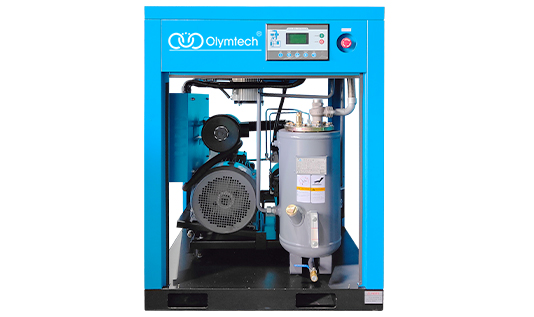

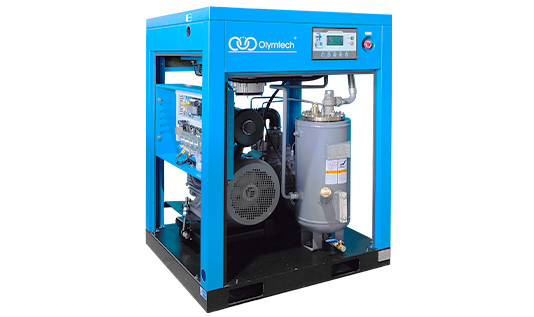

OL Series Fixed Speed Screw Air Compressor
OL series is fixed speed belt driven screw air compressor This is our most classic design, air-end is belt driven by asynchronous motor, built with top-quality materials, OL series ensures compressed air reliability and efficiency in the toughest conditions
Inquiry
Benefits

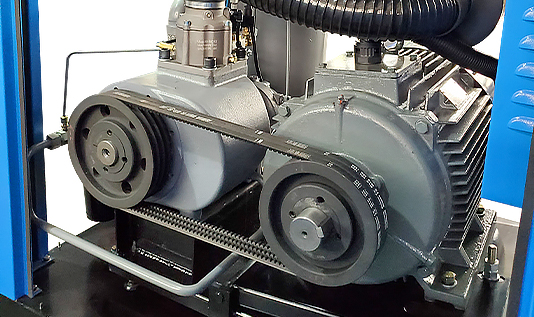

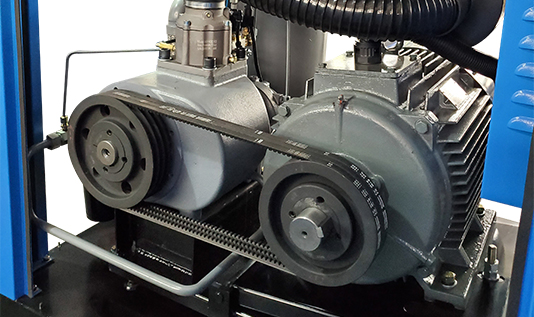

1. FIX SPEED BELT DRIVEN SCREW
Germany OPTl belt, easy for replace, and ensure the product quality.Oversize air-end,low rpm,no overheat problem.
IP54 motor.SKF bearing, F level insulation.

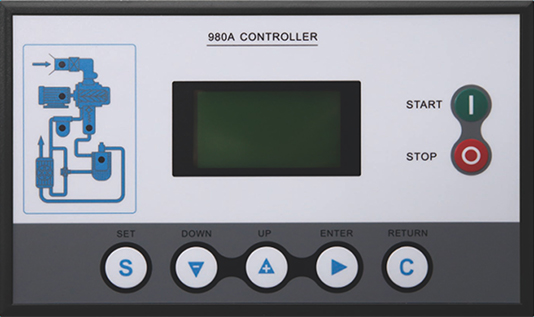

2. PLC CONTROL SYSTEM
Intelligent microcomputer control system, controller has the remind & record function,show the compressor situation clearly
Controller with hase reversal protection, current overload protection, pressure protection,overheat protection.

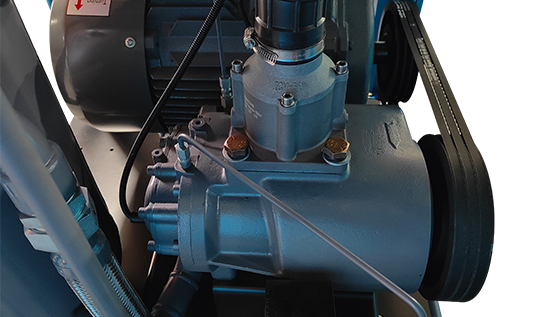

3. STABLE INTAKE VALVE SYSTEM
Unique structural design for the intake valve.
No oil splash out from intake valve when emergency stop or shutdown suddenly
4. INTELLIGENT MICRD-COMPUTER CONTROL SYSTEM
Internationa standard design, stable and reliable

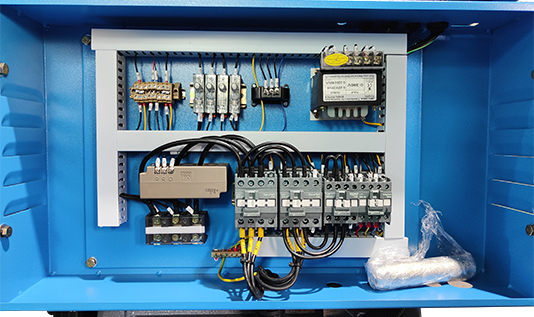

Schneider electric parts,ensures stable operation
Technical Parameter
| Model | Max | Capacity | Motor Power | Connection | Net Weight | Dimension | |||
|---|---|---|---|---|---|---|---|---|---|
| Working Pressure | (Lx W x H) | ||||||||
| -- | bar | psig | m 3 /min | CFM | hp | kw | inch | kgs | mm |
| OL7.5CB-8 | 8 | 116 | 1.1 | 38 | 10 | 7.5 | G1/2'' | 220 | 850x600x850 |
| OL7.5CB-10 | 10 | 145 | 1 | 35 | |||||
| OL7.5CB-13 | 12.5 | 182 | 0.8 | 28 | |||||
| OL11CB-8 | 8 | 116 | 1.7 | 60 | 15 | 11 | G3/4'' | 280 | 850x600x950 |
| OL11CB-10 | 10 | 145 | 1.5 | 53 | |||||
| OL11CB-13 | 12.5 | 182 | 1.3 | 45 | |||||
| OL15-8 | 8 | 116 | 2.4 | 84 | 20 | 15 | G1'' | 380 | 950x870x1230 |
| OL15-10 | 10 | 145 | 2.2 | 77 | |||||
| OL15-13 | 12.5 | 182 | 1.7 | 60 | |||||
| OL18.5-8 | 8 | 116 | 3 | 105 | 25 | 18.5 | G1'' | 500 | 950x870x1230 |
| OL18.5-10 | 10 | 145 | 2.7 | 95 | |||||
| OL18.5-13 | 12.5 | 182 | 2.3 | 81 | |||||
| OL22-8 | 8 | 116 | 3.7 | 130 | 30 | 22 | G1'' | 540 | 950x870x1230 |
| OL22-10 | 10 | 145 | 3.2 | 113 | |||||
| OL22-13 | 12.5 | 182 | 2.7 | 95 | |||||
| OL30-8 | 8 | 116 | 5 | 176 | 40 | 30 | G1-1/2'' | 680 | 1150x990x1395 |
| OL30-10 | 10 | 145 | 4.5 | 158 | |||||
| OL30-13 | 12.5 | 182 | 3.6 | 127 | |||||
| OL37-8 | 8 | 116 | 6.2 | 218 | 50 | 37 | G1-1/2'' | 730 | 1150x990x1395 |
| OL37-10 | 10 | 145 | 5.6 | 197 | |||||
| OL37-13 | 12.5 | 182 | 4.6 | 162 | |||||
| OL45-8 | 8 | 116 | 7.6 | 254 | 60 | 45 | G1-1/2'' | 790 | 1150x990x1395 |
| OL45-10 | 10 | 145 | 6.5 | 229 | |||||
| OL45-13 | 12.5 | 182 | 5.6 | 197 | |||||
Video
Download
Case
Screw Air compressors are used widely across all industries. Such as automotive, brewing, food packaging, aerospace, construction, and more. Stationary screw compressors are the optimal choice for large industrial applications with a continuous air demand.
