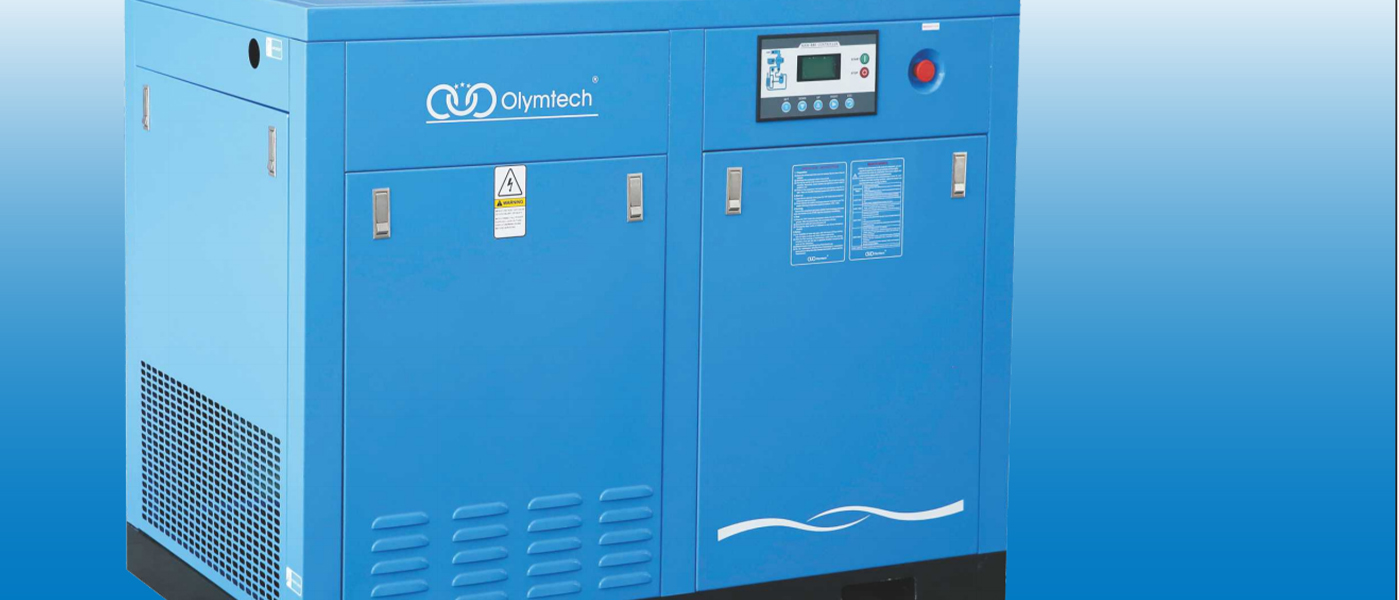

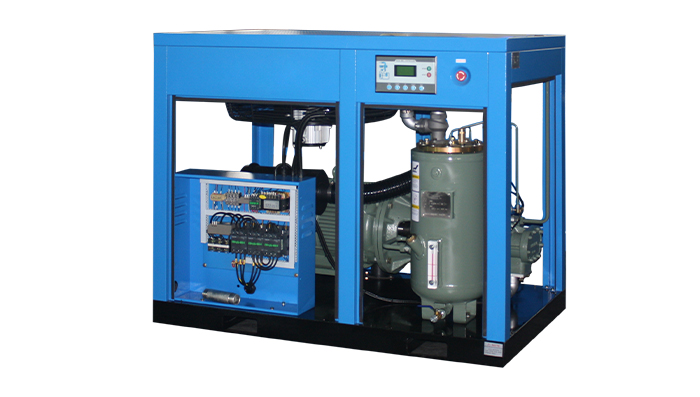

OLD Series Fixed Speed Screw Air Compressor
OLD series is fixed speed direct driven screw air compressor This is our most classic design, air-end is direct driven by asynchronous motor, built with top-quality materials, high quality coupling, OLD will operate continuously in the harshest environments, avoiding costly downtime and production delays
Inquiry- Benefits
- Technical Parameter
- Video
- Catalogue Download
- Case
Benefits

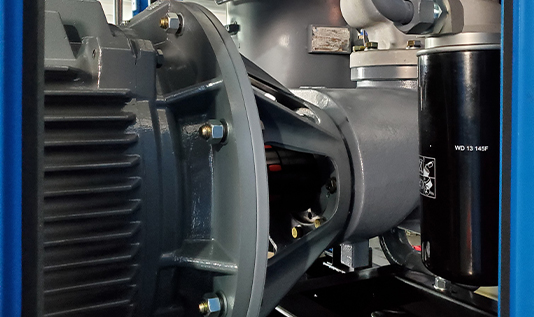

1. 1:1 Energy Transfer
Motor and air-end is 1:1 energy transfer,high efficiency

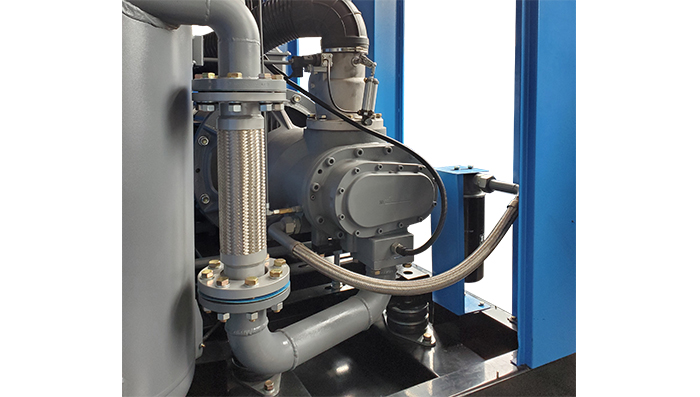

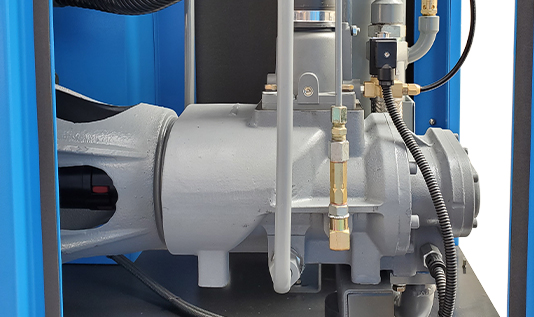

2. Air end
Oversize air-end,low rpm,no overheat problem.

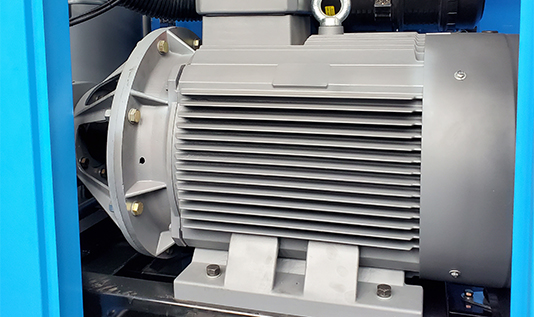

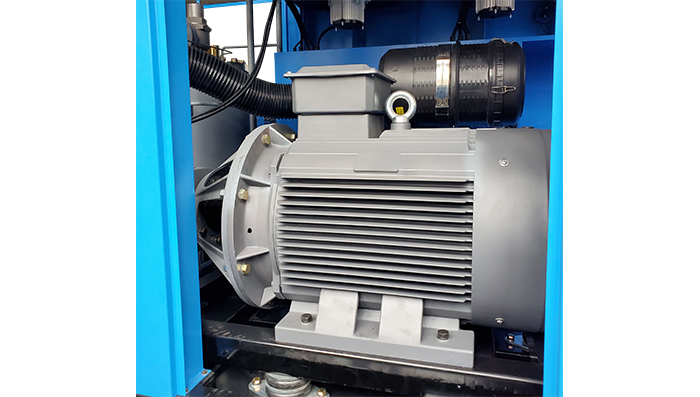

3. IP54 Motor
IP54 Motor,SKF bearing,Flevel insulation.

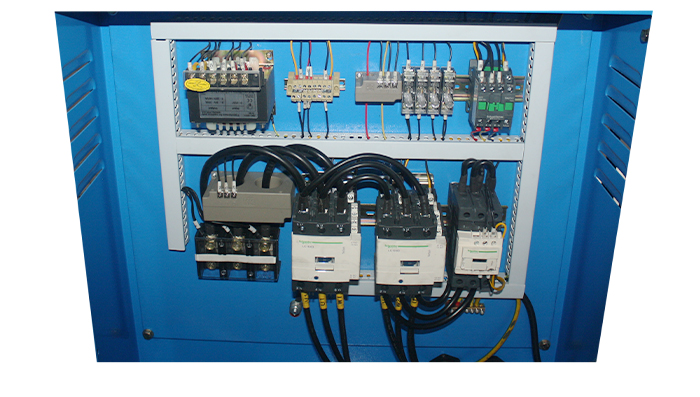

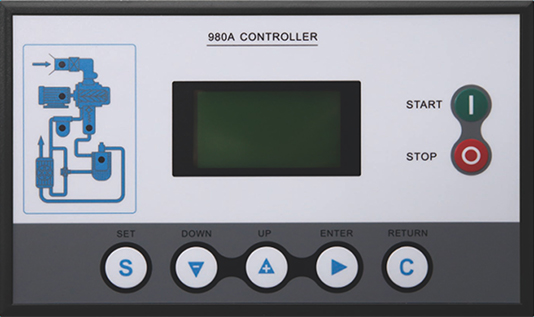

4. Intelligent microcomputer control system
Controller has the remind & record fuction
show the compressor situation clearly
Technical Parameter
Model | Max Working Pressure |
Capacity | Motor Power | Transmission | Connection | Net Weight | Dimension (Lx W x H) |
|||
---|---|---|---|---|---|---|---|---|---|---|
-- | bar | psig | m 3 /min | CFM | hp | kw | inch | kgs | mm | |
OL15D-8 | 8 | 116 | 2.4 | 84 | 20 | 15 | Direct Drive | G1'' | 520 | 1410x850x1135 |
OL18.5D-8 | 8 | 116 | 3.0 | 106 | 25 | 18.5 | Direct Drive | G1'' | 540 | 1410x850x1140 |
OL22D-8 | 8 | 116 | 3.6 | 127 | 30 | 22 | Direct Drive | G1'' | 560 | 1410x850x1140 |
OL37D-8 | 8 | 116 | 6.2 | 219 | 50 | 37 | Direct Drive | G1-1/2'' | 730 | 1530x930x1255 |
OL45D-8 | 8 | 116 | 7.6 | 268 | 75 | 55 | Direct Drive | G1-1/2'' | 800 | 1530x930x1255 |
OL55D-8 | 8 | 116 | 10.0 | 353 | 75 | 55 | Direct Drive | G1-1/2'' | 1180 | 1800x1125x1430 |
OL75D-8 | 8 | 116 | 13.0 | 459 | 100 | 75 | Direct Drive | G2'' | 1470 | 2000x1300x1600 |
OL90D-8 | 8 | 116 | 16.0 | 565 | 120 | 90 | Direct Drive | G2'' | 1950 | 2130x1400x1750 |
OL110D-8 | 8 | 116 | 20.0 | 706 | 150 | 110 | Direct Drive | DN65 | 2450 | 2550x1550x1900 |
OL132D-8 | 8 | 116 | 24.0 | 848 | 180 | 132 | Direct Drive | DN65 | 2500 | 2550x1550x1900 |
